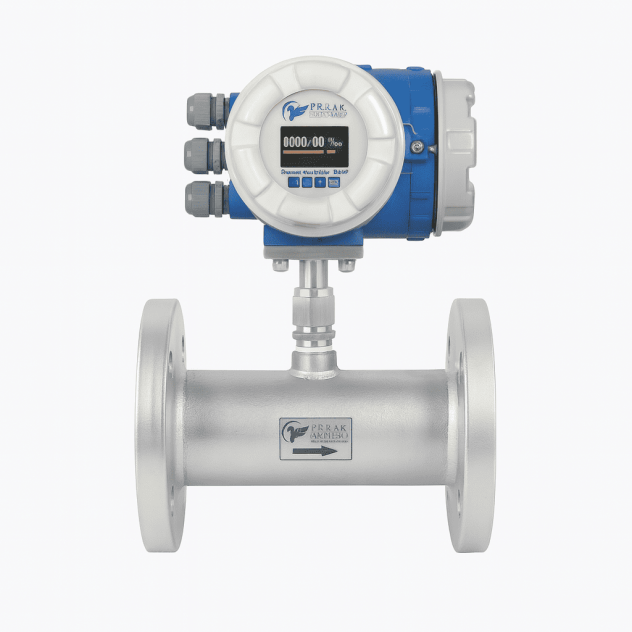

DescriptionThe BT-3010-G Inline Thermal Mass Flow Meter uses an advanced thermal dispersion sensor to deliver high accuracy, repeatability, and stable gas flow measurement. It is ideal for monitoring and controlling gas flow in pipelines and industrial process systems.

Its flange connection ensures secure installation with minimal pipeline modification. The inline design provides smooth integration and accurate readings without pressure loss. Built with SS316 industrial-grade materials, it is engineered for harsh environments and long-term reliability.

The meter offers multiple output options, including 4-20 mA and RS485 Modbus RTU, ensuring easy integration with plant control systems. It features self-diagnostics, detecting performance issues and reducing maintenance needs.

With PESO-certified flameproof and weatherproof housing, it is suitable for demanding industries such as oil and gas, chemical plants, energy, and utilities.

Key Features

Graphical OLED display

4–20 mA analog output

Dual-chamber die-cast aluminum enclosure

SS316 sensor probe with no moving parts

Easy installation with 1/2 to 1 inch NPT probe

Field programmable

Optional IoT online monitoring

Flameproof and weatherproof

Designed for harsh environments

Key Benefits

Direct mass flow measurement

Fast response time

High accuracy and reliability

No moving parts and low maintenance

Wide turndown ratio

Low pressure drop

Wide operating temperature range

Important Technical Specifications

Mechanical

Measuring principle: Constant Temperature Anemometer (CTA)

Sensor: PT20, PT300/PT1000

Process connection: Flange ANSI / JIS / DIN

Pipe size: DN50 to DN2000

Housing: Dual-chamber die-cast aluminum

Response time: 1 second

Electronics

Display: OLED

Parameters: Flow + Totalizer

Output: 4–20 mA

Communication: RS485 Modbus RTU

Power: 24 VDC

PESO-approved flameproof enclosure

Process

Mediums: Natural gas, nitrogen, oxygen, CO₂, hydrogen, methane, gas mixtures, etc.

Measuring range: 1–70 nm/s (standard), up to 100 nm/s (optional)

Accuracy: ±2% of reading + 0.5% FS

Temperature: –20 to +150°C

Pressure: 0–16 bar (higher optional)
