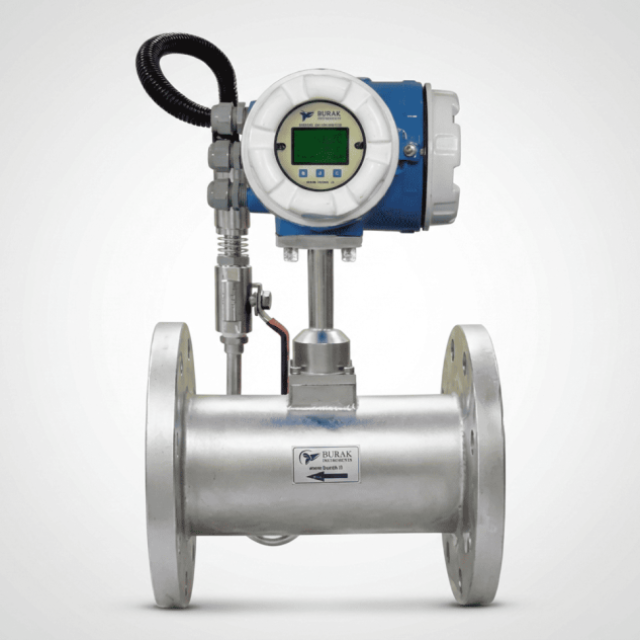

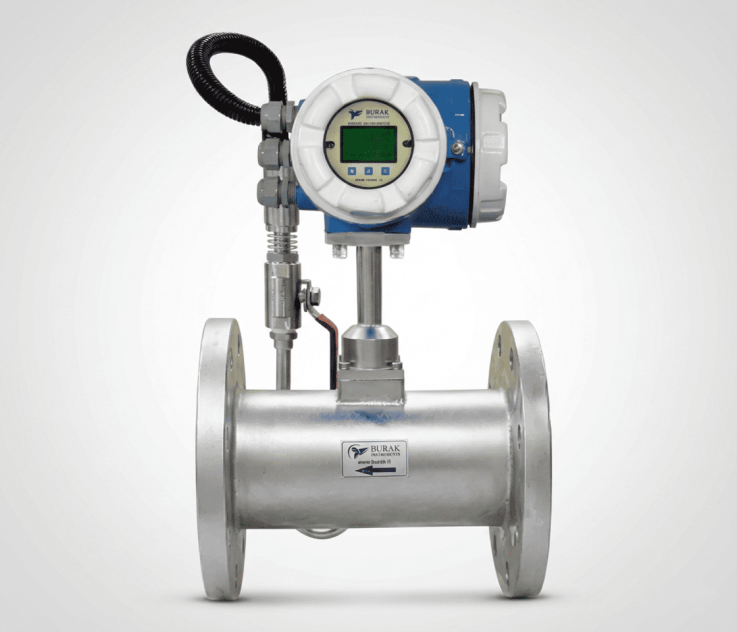

The BX-6000-G Vortex Flow Meter is designed for accurate liquid flow measurement using the proven vortex shedding principle. A precisely engineered bluff body generates stable vortices as liquid flows through the meter, which are detected by a high-sensitivity piezo sensor. These signals are processed by a microprocessor-based transmitter and displayed on a graphical LCD, providing reliable flow data even under high pressure and temperature conditions. Built with robust stainless-steel construction and a flameproof, weatherproof IP-66 enclosure, the meter ensures long-term stability, minimal maintenance, and dependable performance across industrial applications such as chemical processing, water treatment, and oil & gas.

Key Features (Short & Defined)

Large graphical LCD display

4–20 mA analog output (HART optional)

RS485 Modbus RTU communication

IoT-enabled online monitoring

Stainless-steel body construction

Field programmable configuration

Flameproof & weatherproof IP-66 enclosure

Key Benefits (Short & Clear)

High accuracy (±1% of reading)

Wide rangeability with turndown 1:10

Suitable for high-pressure applications

Fast response to changing flow conditions

No moving parts – zero maintenance

Easy installation and long service life

Technical Snapshot (Compressed)

The meter operates on the vortex shedding principle using a piezo sensor and supports DN 15 to DN 250 sizes with flanged or wafer connections. It offers measuring velocities from 2 to 10 m/s, operates up to 150°C, and supports pressures up to 16 bar standard (50 bar optional). Power supply is 24 VDC with RS485 Modbus communication.

Contact: 8355850162
